In motorsports, every fraction of a second counts, and one of the best ways to boost a car’s performance is by increasing the power output of its engine. This is where turbochargers and superchargers come into play. Both devices are designed to force more air into the engine, allowing it to burn more fuel and generate more power. But while they share a common goal, they operate differently, each with unique pros and cons. In this post, we’ll break down the key differences between turbochargers and superchargers. Examine how they work, and explore why teams choose one over the other in the high-stakes world of motorsport.
What Are Turbochargers and Superchargers?
Both turbochargers and superchargers fall under the umbrella of forced induction systems, meaning they “force” more air into the engine’s combustion chamber. In a naturally aspirated engine, air enters the combustion chamber at atmospheric pressure. Forced induction systems increase the pressure, allowing more air to enter, which means more fuel can be burnt, resulting in more power.
However, turbochargers and superchargers achieve this forced induction in different ways:
Turbocharger: Powered by exhaust gases from the engine.
Supercharger: Powered mechanically by a belt connected directly to the engine.

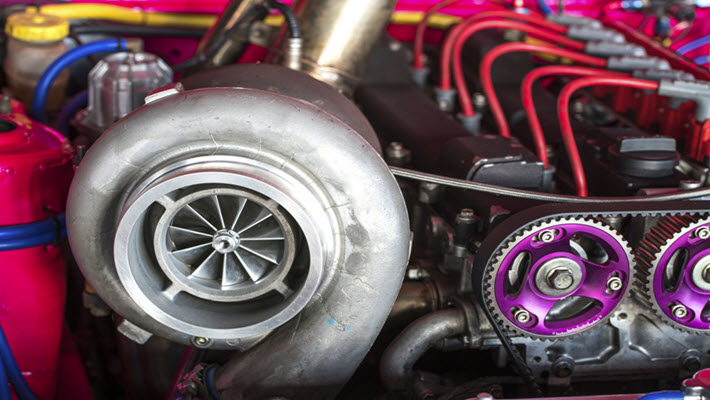

Turbochargers: Using Exhaust for Power
Turbochargers are essentially small turbines that harness energy from the engine’s exhaust gases to compress incoming air. When exhaust gases pass through the turbo, they spin a turbine, which in turn spins an air compressor. This compressed air is then forced into the engine, increasing the air-to-fuel ratio and creating more power.
Advantages of Turbochargers
1. Efficiency: Because they use exhaust gases (which would otherwise go to waste) to create power, turbochargers are more fuel-efficient than superchargers.
2. Power Potential: Turbochargers can achieve higher levels of boost, resulting in significant power increases without requiring larger engine sizes.
3. Smaller Engine Possibilities: Turbochargers allow engines to produce more power from a smaller displacement, which is ideal for lightweight racing cars.
Drawbacks of Turbochargers
1. Turbo Lag: One of the biggest downsides of turbochargers is “turbo lag.” Because they rely on exhaust gases to spool up, there can be a noticeable delay in power delivery, especially at lower RPMs.
2. Heat Generation: Turbochargers generate a lot of heat, which can lead to overheating issues if not managed correctly. This requires additional cooling systems, which add weight and complexity.
Superchargers: Direct Power from the Engine
Unlike turbochargers, superchargers are directly powered by the engine itself, typically via a belt connected to the crankshaft. This setup allows the supercharger to provide immediate power without delay, giving the engine an instant boost in response to the driver’s throttle input.
Advantages of Superchargers
1. Immediate Response: Superchargers deliver power instantly because they’re mechanically driven by the engine, making them ideal for situations where immediate acceleration is crucial.
2. Better Low-End Performance: Superchargers are effective at low RPMs, delivering consistent power across a wide range of speeds.
3. Simplicity: Superchargers are generally easier to install and maintain than turbochargers, as they don’t require complex exhaust plumbing.
Drawbacks of Superchargers
1. Less Efficient: Because they rely on engine power to operate, superchargers tend to consume more fuel than turbochargers. This can reduce fuel efficiency, which is a significant factor in endurance racing.
2. Power Drain: Superchargers use a portion of the engine’s own power to operate, effectively “stealing” horsepower in the process. Although they increase overall power output, they’re less efficient than turbochargers for this reason.
Why Some Motorsport Teams Prefer Turbochargers
Many motorsport teams choose turbochargers for their ability to deliver high horsepower without requiring larger, heavier engines. Turbochargers shine in categories like Formula 1 and endurance racing, where fuel efficiency and power output are equally important.
For instance, Formula 1 regulations since 2014 have mandated the use of 1.6-litre V6 turbocharged hybrid engines. These turbo engines not only provide immense power but also allow teams to maximise fuel efficiency, making them perfect for F1’s fuel-limited races.
In endurance racing, like the 24 Hours of Le Mans, turbochargers help cars maintain strong performance over long distances without excessive fuel consumption, a critical factor in races where efficiency plays a big role in winning.
Why Other Teams Prefer Superchargers
On the other hand, superchargers are popular in motorsports that prioritise immediate power delivery and consistent performance across a range of RPMs. In drag racing, where instant acceleration off the line is crucial, superchargers provide the immediate power boost needed to launch cars off the start line and maintain high speeds over short distances.
Some NASCAR teams also favour superchargers for their low-end torque and responsiveness, which are beneficial on oval tracks with frequent acceleration out of tight turns.
Choosing Between a Turbocharger and a Supercharger
The choice between turbochargers and superchargers ultimately comes down to the specific needs of the racing discipline:
Turbochargers are generally preferred for racing formats that demand high top speeds and efficiency, like Formula 1 and endurance racing. The higher power output with lower fuel consumption makes them ideal for situations where sustained performance is critical.
Superchargers are favoured in short-distance racing formats where instant power delivery and low-end torque are essential, such as drag racing and certain stock car formats.
The Best of Both Worlds: Twincharging
In some cases, manufacturers and racing teams combine turbocharging and supercharging to leverage the benefits of both. This setup, called twincharging, uses a supercharger to provide immediate power at low RPMs, while a turbocharger kicks in at higher RPMs for sustained power output. Twincharging can be complex and costly, but it creates a balanced power curve, making it suitable for high-performance applications where responsiveness and power are equally important.
Powering the Future of Motorsport
In motorsports, the choice between turbochargers and superchargers can shape a car’s performance on the track. Turbochargers bring efficiency and high-end power, while superchargers deliver instant response and consistent low-end torque. Each technology has its advantages, and the choice often depends on the specific needs of the racing discipline.
As technology advances, the lines between these systems are beginning to blur, with hybrid engines, twincharging, and electric turbocharging. Pushing the boundaries of what’s possible. Understanding these differences not only enhances our appreciation for motorsports but also highlights the incredible engineering behind the scenes that enables drivers to push their machines to the limit.
